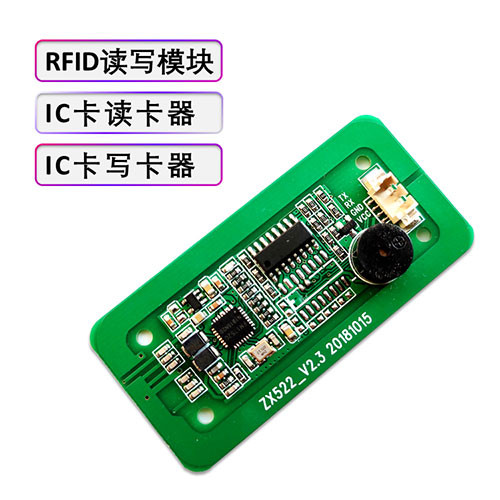

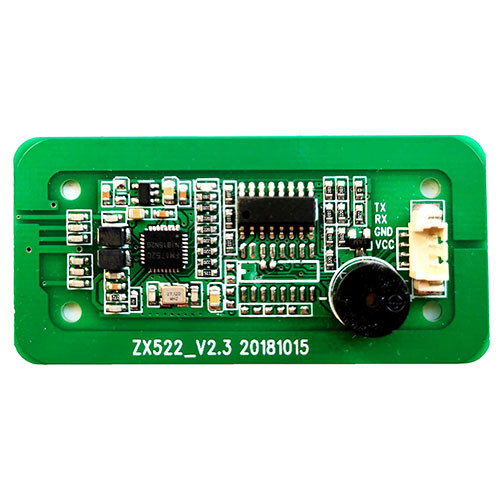

IC radiotezlik kartı oxuyucu modulu RFID elektron modulu S50 kontaktsız induksiya UART

Features

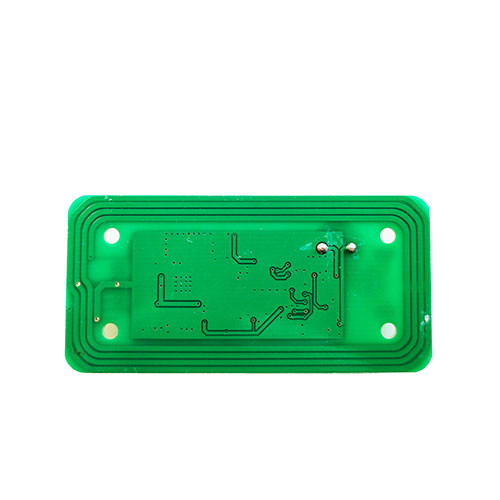

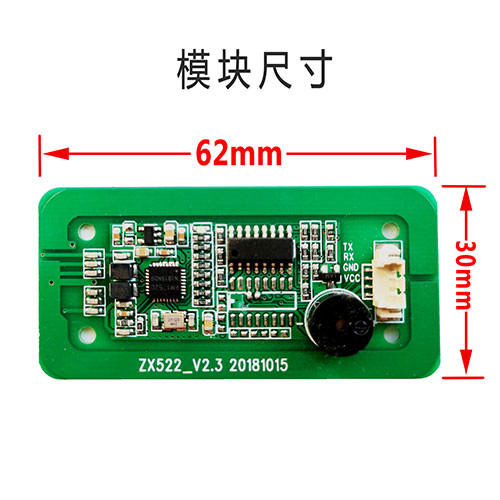

Antenna Integrated Design
Can communicate directly with RS232 devices
Compatible with UART, Wiegand interface
The module is equipped with MCU and RS232 chip, which can work independently, and can directly output TTL 232 level, no need to add MCU control, no need to add UART interface to 232 chip, which can reduce the cost and develop products faster.

Serial port settings
Open the "Serial Port Debugging Assistant" in the file package, and the serial port settings are as follows:
Baud rate: 9600
Check digit: None
Data bits: 8
stop bit: 1
Tick Hex Display

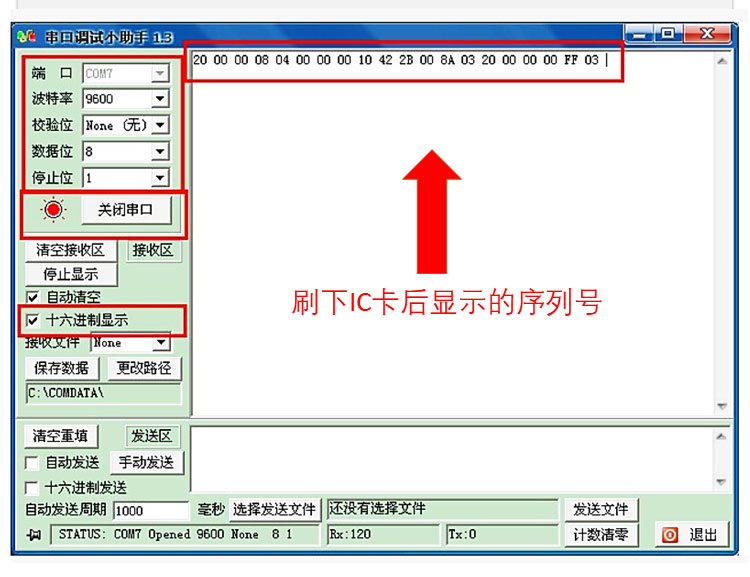

When the wiring is correct, swipe the IC card, and the type and serial number of the IC card will be output through the serial port, as shown in the figure

Instructions for using
Connect the DC5V power supply to the module
Test with an M1 type card
When shipping, a terminal connection line + a white card will be provided for testing
When the card is close: the red indicator light is always on, and the card serial number-related instructions are sent through the serial port;
After the card leaves: the red indicator light goes out, and an instruction to leave the card is sent through the serial port.
